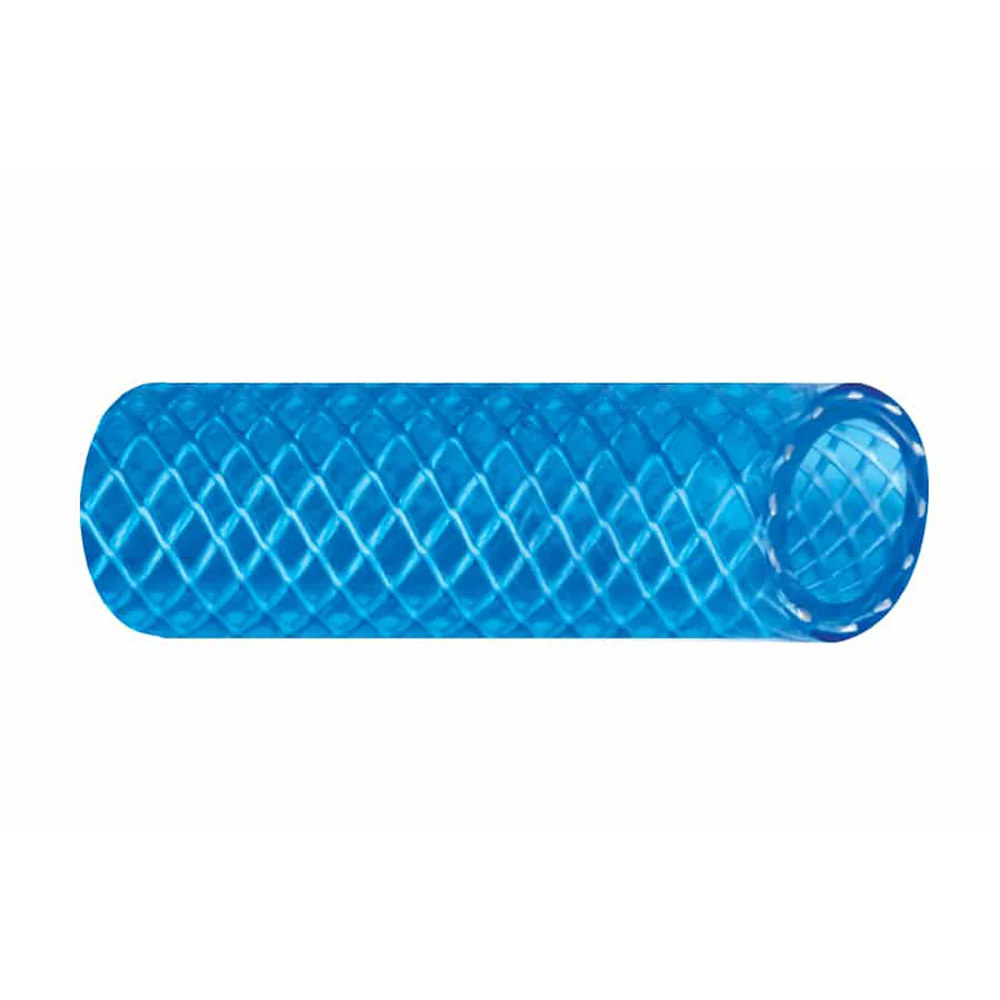

Trident Marine 5/8" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot [165-0586-FT]

5/8" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).

Features:

• Sold by the foot
• The Blue cover allows for easy identification of "Cold Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube & Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• ID Diameter (inches): 5/8"
• Length (Feet): Sold By The Foot
• Box Dimensions: 1"H x 1"W x 6"L WT: 0.17 lbs

Quick Guide (pdf)
