Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 20 - 8M Cable Y-Cable [T70319]

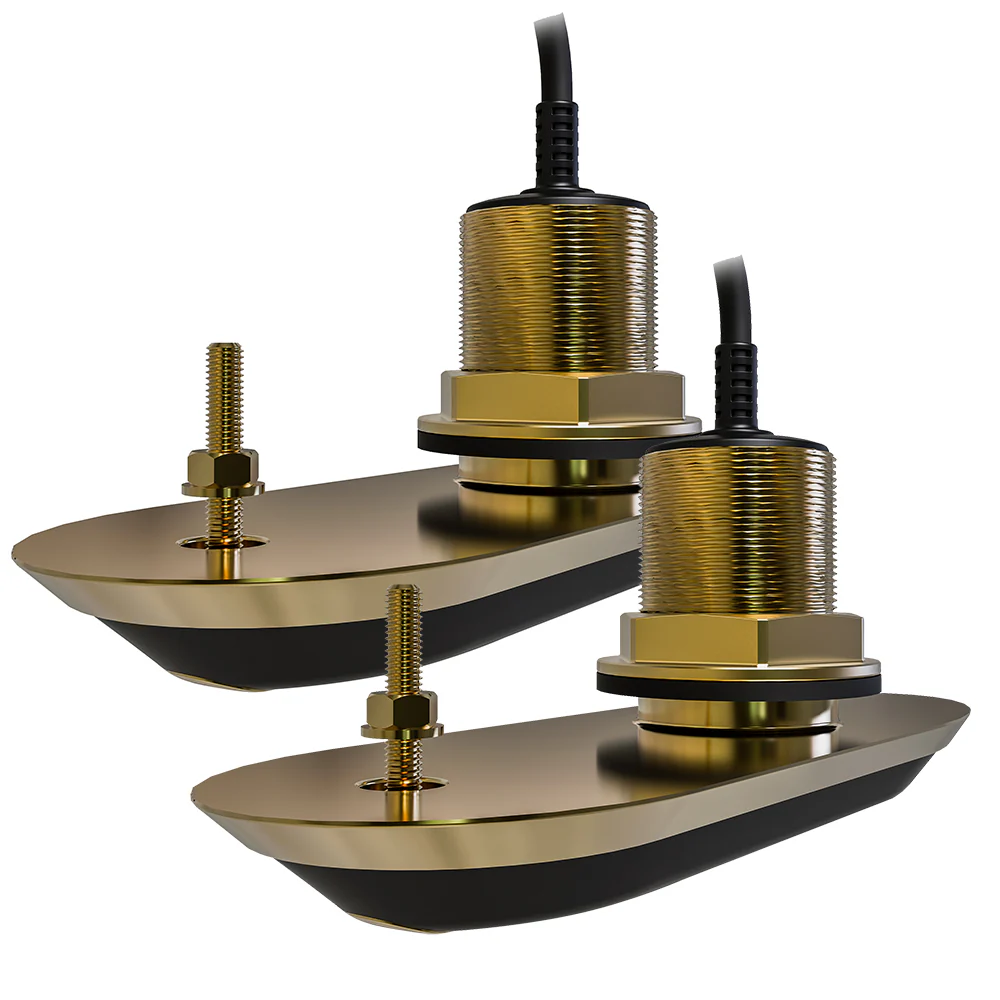

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-Cable
Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.
Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.
The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)
What’s in the Box?
- RV-220P Bronze Port Transducer with 2M cable
- RV-220S Bronze Starboard Transducer with 2M cable
- RealVision 3D Transducer Y-Cable
- RealVision 3D 8M (26') Transducer Extension Cable
- Anti-rotation bolt kit
- Installation instructions
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 25
- Imaging: Standard/Down/Side
- Chirp: High
- Cable Length (Feet): 33'
- Mounting Style: Thru-Hull
- Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs
- UPC: 723193855379
Original: $1,722.63
-65%$1,722.63
$602.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-Cable
Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.
Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.
The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)
What’s in the Box?
- RV-220P Bronze Port Transducer with 2M cable
- RV-220S Bronze Starboard Transducer with 2M cable
- RealVision 3D Transducer Y-Cable
- RealVision 3D 8M (26') Transducer Extension Cable
- Anti-rotation bolt kit
- Installation instructions
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 25
- Imaging: Standard/Down/Side
- Chirp: High
- Cable Length (Feet): 33'
- Mounting Style: Thru-Hull
- Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs
- UPC: 723193855379
