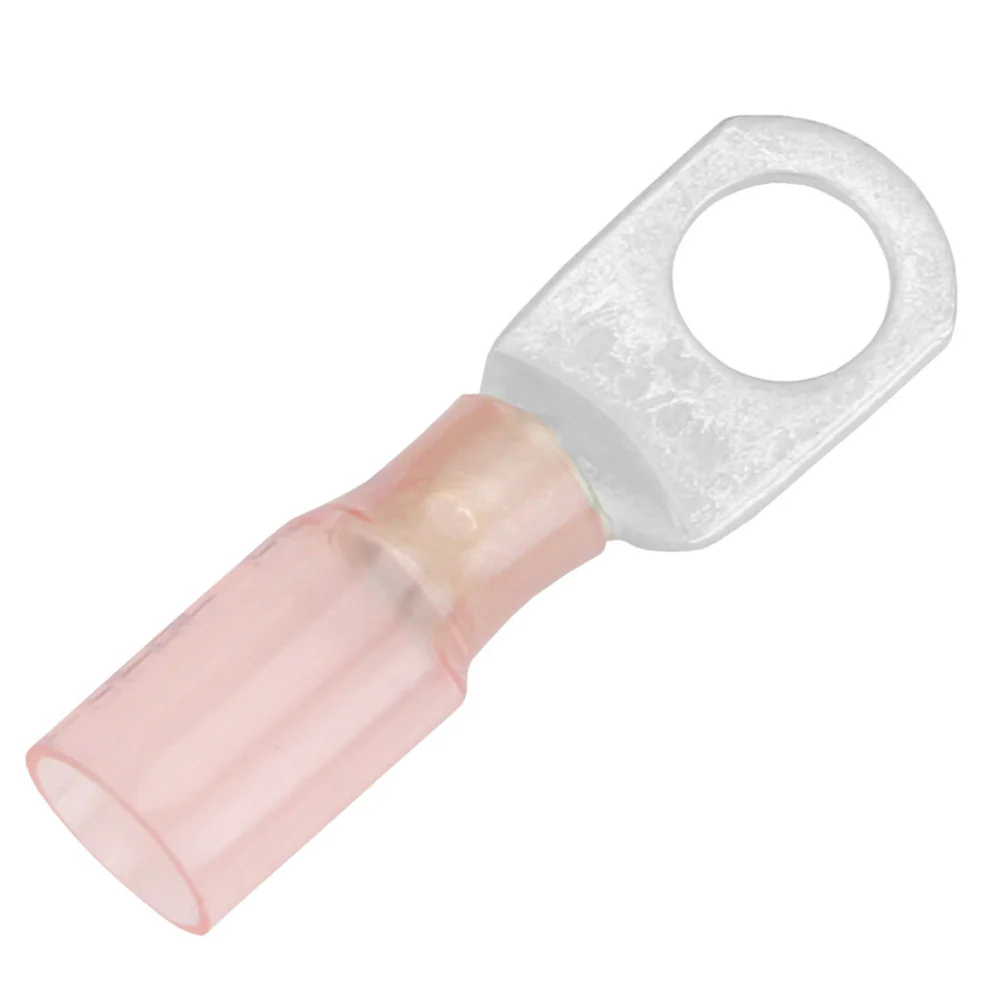

Pacer 8 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 25 Pack [TE8-38R-25]

8 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
• Conforms to automotive manufacturers’ specifications for wiring repairs
• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL
• CSA
• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 °C
• Operating Temp: -55 °C - 125 °C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Stud Size: 3/8”
• Terminal Pad Width: 0.59”
• Package Size: 25

Specifications:

• Gauge: 8 AWG
• Heat Shrink: Yes
• Package Qty: 25
• Post Size: 3/8"
• Type: Heat Shrink
• Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs
• UPC: 840248210140

Brochure (pdf)
